Digital Flat-bed Printer (Solvent ink type)

Model Name

GL-3

Head Type

Micro Piezo 8 Channel Head

Color ( 8 Colors ) Cyan, Magenta, Yellow, Black, Light black,
Light light black, Light magenta,Light cyan

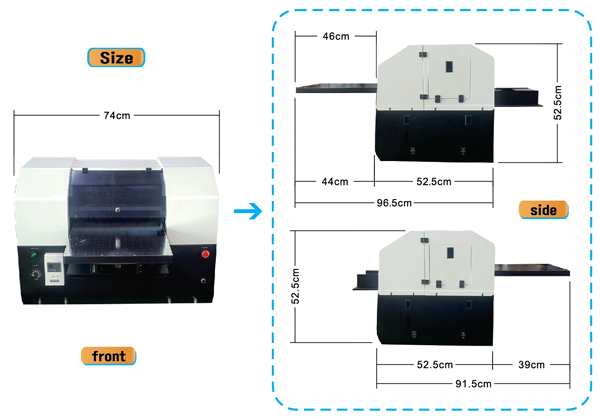

Max. Printing Size

329 mm x 600 mm

Maximum Material Thickness

100mm / 150 mm

Printing Type

Flatbed movement type

Power Consumption

AC 220V ±10%,  6A

Interface And Connectivity

USB 2.0 / WiFi / Ethernet (10/100 Base-T)

Computer Operating System

Microsoft Windows 8 / 7 / XP

Output S/W

Illustrator / Coreldraw / Software Rip, etc

Resolution / Printing Speed

720 x 720 dpi / 60sec (320 x 210mm, Oneway)
1440 x 720 dpi / 1Min 50sec (320 x 210mm, Oneway)
1440 x 1440 dpi / 3Min 30sec (320 x 210mm, Oneway)

Environmental Conditions

Temperature 16~29C, Humidity 20~80% RH

Editing S/W

Photoshop, Coreldraw, Illustrator, Partner Rip

Warranty

1 year

Weight

70Kg (Net)

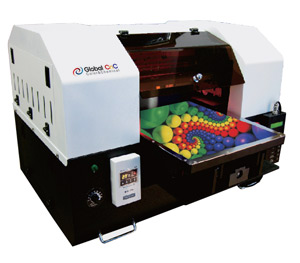

Products printed by GL-3
