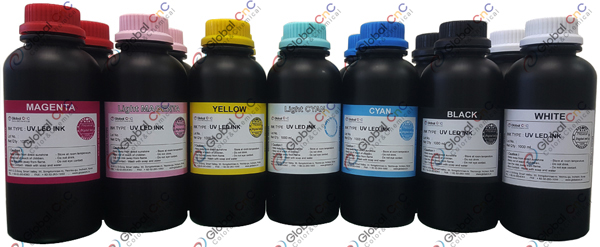

UV LED inks for UV LED Flatbed priner and UV LED Roll to Roll printer.

* Suitable Printer heads : Ricoh (Gen4, Gen5, GH2220) , Epson(DX4, DX5, DX7) , Kyocera





(1) For Hard type Substrates.

Product & Code

Color

Suitable
Printer head

Printer Type

LED
light

Watts/cm2

UV LED Ink

For Hard Type
Substrates

H1

C M Y K W GL

Epson DX4

Flat bed

395nm

2~4

H2

C M Y K W GL

Epson DX5

2~4

H3

C M Y K W GL

Epson DX7

2~4

H4

C M Y K W GL

Ricoh Gen4,Gen5

4

H5

C M Y K W GL(Vanish)

Ricoh GH2220

2~4

H6

C M Y K W LC LM GL(Vanish)

Kyocera

Flatbed and
Roll to Roll

Strong UV light
source in a dryer

Long term exterior performance with proven resistance to the effects of UV degradation and color fade
Formulated for printing on various rigid substrates
High intensity colors with extended color gamut
Excellent scratch resistance
Fast Printing time,
High resolution image
Excellent scratch resistance
Low odor formulation.

(2) For Flexible Type Substrates.

Product & Code

Color

Suitable
Printer head

Printer Type

LED
light

Watts/cm2

UV LED Ink

For Flexible Type
Substrates

F1

C M Y K W GL

Epson DX5

Roll to Roll

395nm

2~4

F2

C M Y K W GL

Epson DX7

2~4

F3

C M Y K W GL

Ricoh Gen4,Gen5

4

F4

C M Y K W GL

Ricoh Gen4, Gen5

Strong UV light
source in a dryer

F5

C M Y K W GL(Vanish)

Ricoh GH2220

Flatbed and
Roll to Roll

2~4

F6

C M Y K W LC LM GL(Vanish)

Kyocera

Strong UV light
source in a dryer

Formulated for printing on various flexible substrates
High intensity colors with extended color gamut
Enhanced stretching of ink

Less VOC and RoHS
Excellent scratch resistance
High gloss of flexible ink
Excellent adhesion
Low odor formulation

(3) For Semi Flexible Type Substrates.

Product & Code

Color

Suitable
Printer head

Printer Type

LED
light

Watts/cm2

UV LED Ink

For Semi
Flexible Type

Substrates

SF1

C M Y K W GL

Epson DX4

Roll to Roll

395nm

2~4

SF2

C M Y K W GL

Ricoh Gen4, Gen5

4

SF3

C M Y K W GL(Vanish)

Ricoh GH2220

Flatbed and
Roll to Roll

2~4

SF4

C M Y K W LC LM GL(Vanish)

Kyocera

Strong UV light
source in a dryer

SF5

C M Y K W LC LM

Ricoh

SF6

C M Y K W LC LM GL

Epson DX5



Formulated for printing on various flexible-rigid substrates
High intensity colors with extended color gamut
Excellent scratch resistance
Excellent adhesion
Low odor formulation.
